Large Format / Full Frame Cameras

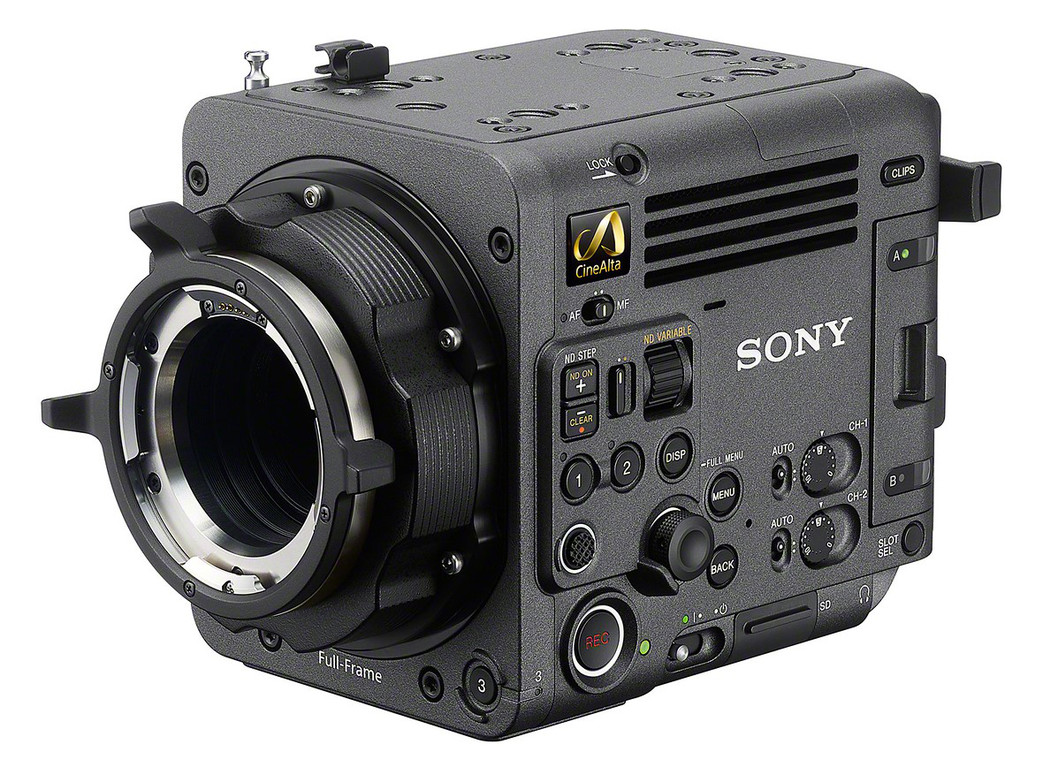

Sony Burano 8K Camera
Lens Mount
PL Mount (detachable)/E-mount (lever lock type)
Sensor Resolution
Effective: 41.9 Megapixel (8632 x 4856)
Image Sensor
35 mm full frame (35.9 x 24.0 mm), Exmor RS CMOS image sensor
Latitude
16 stops (S-Log3 shooting)
Image Stabilization
Sensor-Shift, 5-Axis
Gain control
-3 to 18 dB (every 1 dB)
ISO Sensitivity Range
ISO 800/3200 (Cine EI mode, D55 Light source)
Color temperature range
2000 K - 15000 K
Video compression
X-OCN(LT), XAVC H Intra HQ, XAVC H Intra SQ, XAVC H Long, XAVC Intra, XAVC Long
Internal Recording Modes
X-OCN LT
FF 8.6K 16x9
8632 x 4856 at 23.98/25/29.97 fps
FF 8.6K 17x9
8632 x 4552 at 23.98/24.00/25/29.97 fps
FFc 6K 16x9*
6052 x 3404 at 23.98/25/29.97/50/59.94 fps
FFc 6K 17x9
6052 x 3192 at 23.98/24.00/25/29.97/50/59.94 fps
S35 5.8K 16x9
5760 x 3240 at 23.98/25/29.97/50/59.94 fps
S35 5.8K 17x9
5760 x 3036 at 23.98/24.00/25/29.97/50/59.94 fps
S35c 4K 17x9*
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94/100/120 fps
XAVC H-I HQ/XAVC H-I SQ
FF 8.6K 17x9
8192 x 4320 at 23.98/24.00/25/29.97 fps
FF 8.6K 16x9
7680 x 4320 at 23.98/25/29.97 fps
XAVC H-L
FF 8.6K 16x9
7680 x 4320 at 23.98/25/29.97 fps
XAVC-I
FFc 6K 17x9
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
FFc 6K 16x9*
3840 x 2160 at 23.98/25/29.97/50/59.94 fps
S35 5.8K 17x9
4096x2160 at 23.98/24.00/25/29.97/50/59.94 fps
S35 5.8K 16x9
3840x2160 at 23.98/25/29.97/50/59.94 fps
S35c 4K 17x9*
4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps
1920 x 1080 at 23.98/25/29.97/50/59.94 fps
* For some lenses, there may be an upper limit on the frame rate, depending on the combination with the recording format.
Audio recording format
LPCM 4ch (48 kHz 24 bit)
Media/Memory Card Slot
"Dual Slot: CFexpress Type B
Video I/O
SDI OUT1: BNC, 12G-SDI, 6G-SDI, 3G-SDI (Level A/B), HD-SDI
SDI OUT2: BNC, 3G-SDI (Level A/B), HD-SDI
1x HDMI (Unspecified Signal) Output
Mobile App Compatible
Yes: Android & iOS
Battery Type
V-Mount - native
Imager Scan Mode
W x H (mm)
8632 x 4856
35.9 x 20.2
8632 x 4552
35.9 x 18.9
6052 x 3404
33.6 x 18.9
6052 x 3192
33.6 x 17.7
5760 x 3240
24.0 x 13.5
5760 x 3036
24.0 x 12.6
4096 x 2160
17.0 x 9.0
Built-in ND filter
CLEAR, linear variable ND (0.6(1/4) - 2.1(1/128))
Optical low pass filter
YES
Slow & Quick Motion (S&Q)
YES
Proxy recording
YES
TC/UB
YES
Memory card slot
SLOT A: Slot for CFexpress Type B card
SLOT B: Slot for CFexpress Type B card
Slot for Utility SD card
Focus System
Fast Hybrid AF (phase-detection AF / contrast-detection AF)
Focus point
Max. 627 points (phase-detection AF)
Recognition target (Movies)
Human
Other features
AF Subj. Shift Sensitivity, AF Assist, AF Transition Speed
LCD Screen
8.8 cm (3.5 type) TFT
Touch Panel
2,764,800 dots
Shutter speed
Angle Mode: 5.6°to 360°, 2F to 64F
Speed Mode: 1/8000 sec to 64F
Image Stabilization
Image Sensor-Shift mechanism with 5-axis compensation (Compensation depends on lens specifications)
Mode
PL mount: High / Low / Off
E-mount: Active / Standard / Off
PC interface
Mass-storage
USB Type-C(R) Terminal
Yes (SuperSpeed USB 5 Gbps (USB 3.2) compatible)
Wireless LAN (built-in)
Yes (Wi-Fi Compatible, IEEE 802.11a/b/g/n/ac (2.4 GHz band/5 GHz band))*2*3
HDMI output
HDMI connector (Type-A)
XLR audio input
Yes (3-pin (female) x2)
Headphone terminal
Yes (3.5 mm Stereo mini jack)
Remote terminal
2.5 mm, 3-pole sub-mini type
DC input
XLR, 11 V to 17 V
TC input/TC output
BNC, TC IN/OUT Switchable
Genlock input/Ref output
BNC, REF IN/OUT Switchable
Grip remote control connector
3.5 mm, 4-pole mini jack
LAN terminal
Yes (1000BASE-T, 100BASE-TX, 10BASE-T)
Microphone
Built-in, monaural
Speaker
Built-in, monaural
Lens compensation
E-mount: Shading, Chromatic Aberration, Distortion, Breathing
Power Consumption w/ LCD screen
Unit nominal power consumption: Approx. 50.0 W (lens, 6K 17:9, 59.94P, X-OCN LT recording, auto fan, excluding grip remote control and peripheral devices)
Unit maximum power consumption: Approx. 66.0 W (lens, 6K 17:9, 59.94P, X-OCN LT recording, 40 °C (104 °F) environment, ND filter (1/4), proxy recording on, Wi-Fi on, auto fan, including grip remote control and peripheral devices)
Weight
Approx. 5 lb 4.7 oz (body only, excluding PL-mount adapter)
Dimensions
5 3/4" x 5 5/8" x 8 5/8" (body without protrusions)
Sony Venice 2 8K Camera
Sensor Mode
8.6K 3:2, 8.2K 17:9, 7.6K 16:9, 5.8K 6:5, 5.8K 17:9, 5.4K 16:9
Recording Formats
In Camera X-OCN XT/ST/LT
8.6K 3:2: 23.98p, 24p, 25p, 29.97p
8.2K 17:9: 23.98p, 24p, 25, 29.97p, 47.95p
7.6K 16:9: 23.98p, 24p, 25p, 29.97p
5.8K 17:9: 23.98p, 24p, 25, 29.97p, 47.95p, 50p, 59.94p
5.8K 6:5: 23.98p, 24p, 25p, 29.97p, 47.95p
5.5K 16:9: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
In Camera ProRes 4444/422 HQ
4K or QFHD: 23.98p, 24p, 25p, 29.97, 50p, 59.94p
Frame Rates
8.6K 1-30, 8.2 or 7.6K 1-60, 5.8K 1-48, 5.8K 17:9 1-90, 5.4K 1-90 FPS
Sensitivity
ISO 800, ISO 3200 (Dual Base ISO)
Latitude
16 Stop
Built-in ND Filters
clear, 0.2, 0.6, 0.9, 1.2, 1.5, 1.8, 2.1, 2.4
Lens Mount
PL Mount, E-mount (lever lock type)
Recording Media
AXS Memory A-Series Slot x 2, SD Card slot x1
Outputs
SDI BNC x 4 (12G,6G, 3G, 1.5G), HD Monitor BNC x 1 (3G, 1.5G-SDI), HDMI Type A x1
Interfaces
Aux (TC) BNC, DC 4-pin XLR, TC BNC, Genlock BNC, Remote 8-pin, Network RJ-45 Type
Audio
Audio 5-pin XLR, Internal Mic, Headphone Stereo Mini Jack
Weight
9lbs, 6.6 oz (wihtout lens, handle vf attachement and accessories)

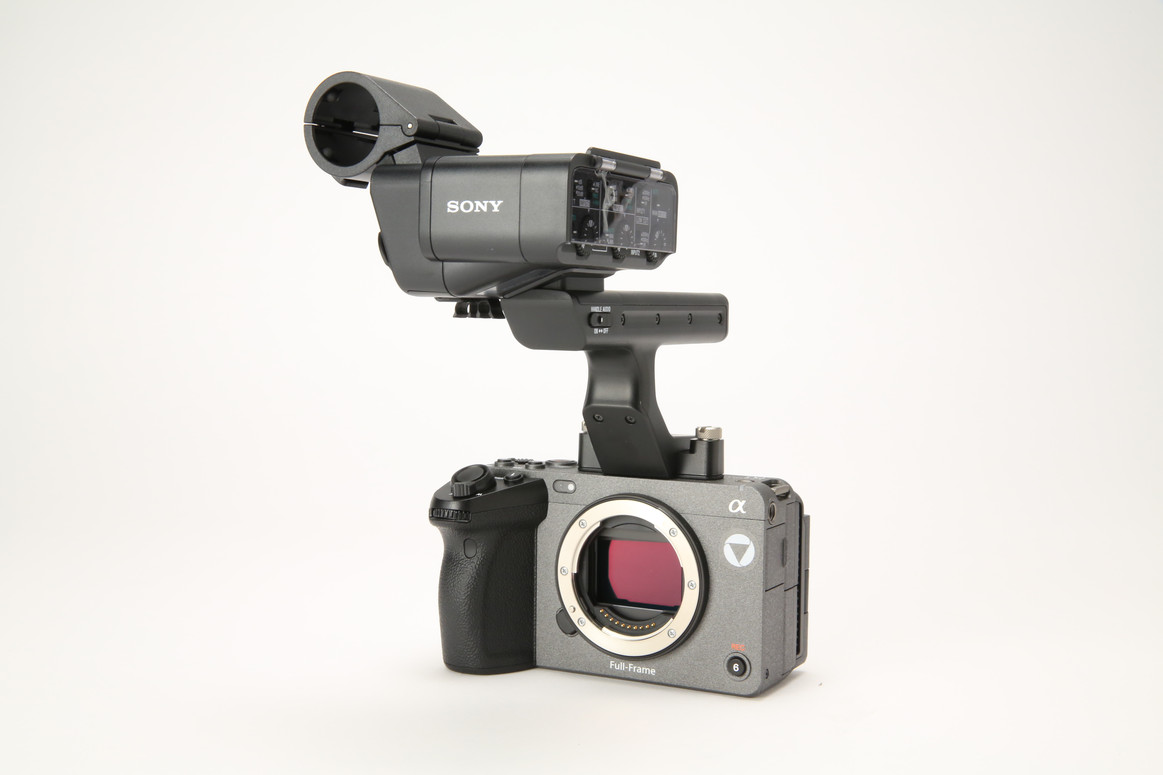

Sony ILME-FX3
Recorded Resolution
3840 x 2160 / 1920 x 1080
Frame Rates
Up to 59.94P - Quick & Slow up to 120 fps in XAVC-HS 4K
Sensitivity
ISO 400/800
Latitude
15+ stops (S-Log3)
Lens Mount
Sony E; PL, Canon EF Adapters
Internal Recording
XAVC HS, XAVC S, XAVC S-1 Long GOP, MPEG-4 Long GOP
Recording Media
CFExpress A Card Slot x 2; SD for data or proxy recording
Outputs
HDMI type-A (422 10bit, RGB 8 bit), Headphone 3.5 mm minijack, USB-C
Weight/Power
1 lb 6.6 oz body only, 1 lb 9.3 oz with battery and memory card - approx 2 lb 3.8oz body, with XLR Handle, battery pack, SD card)

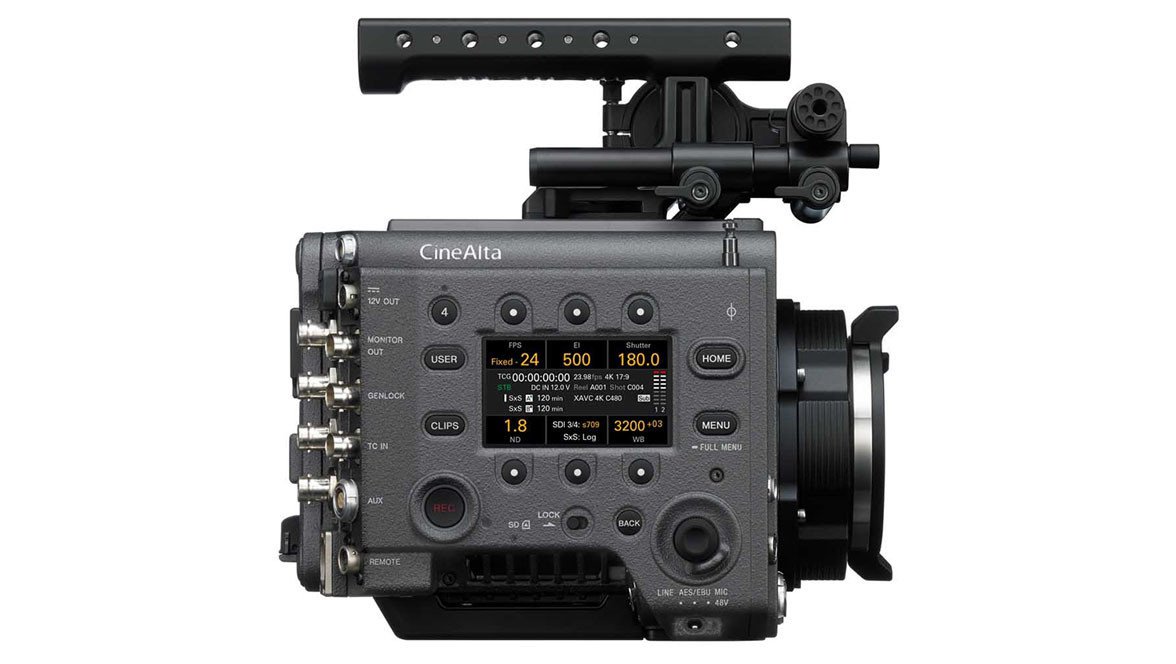

Sony Venice Camera
Sensor Mode
3.8K 16:9, 4K 17.9, 4K 4:3, 4K 6:5, 5.7K 16:9, 6K 17:9, 6K 1.85:1, 6K 2.39:1, 6K 3:2
In Camera Recording
XAVC 4K and XAVC QFHD: Class480 up to 29.97p, Class300 up to 59.94p
HD ProRes 422HQ, HD ProRes 422, HD ProRes Proxy up to 59.94p
MPEG HD422(1920x1080): 23.98p, 24p, 25p, 29.97p, 50i, 59.94i
w/AXS-R7 RAW Recorder
X-OCN ST/LT: 6K 3:2, 6K 2.39:1, 6K 1.85:1, 6K 17:9, 5.7K 16:9, 4K 6:5, 4K 4:3, 4K 17:9, 3.8K 16:9
RAW SQ: 4K 17:9 up to 59.95p, 3.8K 16:9 up to 59.94p
Frame Rates
3.8K 16:9, 4K 17.9: 1-60FPS; 4K 4:3: 1-48FPS; 4K 6:5: 1-30FPS
5.7K 16:9, 6K 17:9, 6K 1.85:1, 6K 2.39:1: 1-30FPS; 6K 3:2: 1-24FPS
Sensitivity
ISO 500
Latitude
15+ Stop
Lens Mount
PL Mount, E-mount (lever lock type, without supplied PL lens mount adaptor)
Recording Media
SxS Cards internal, AXS-A for A7 RAW recorder
Outputs
SDI BNC x 4 (12G, 3G, 1.5G), HD Monitor BNC, HDMI, 1 x 12V 4-pin Hirose, 2 x 24V 3-pin Fischer
Weight
8lbs 10oz body only

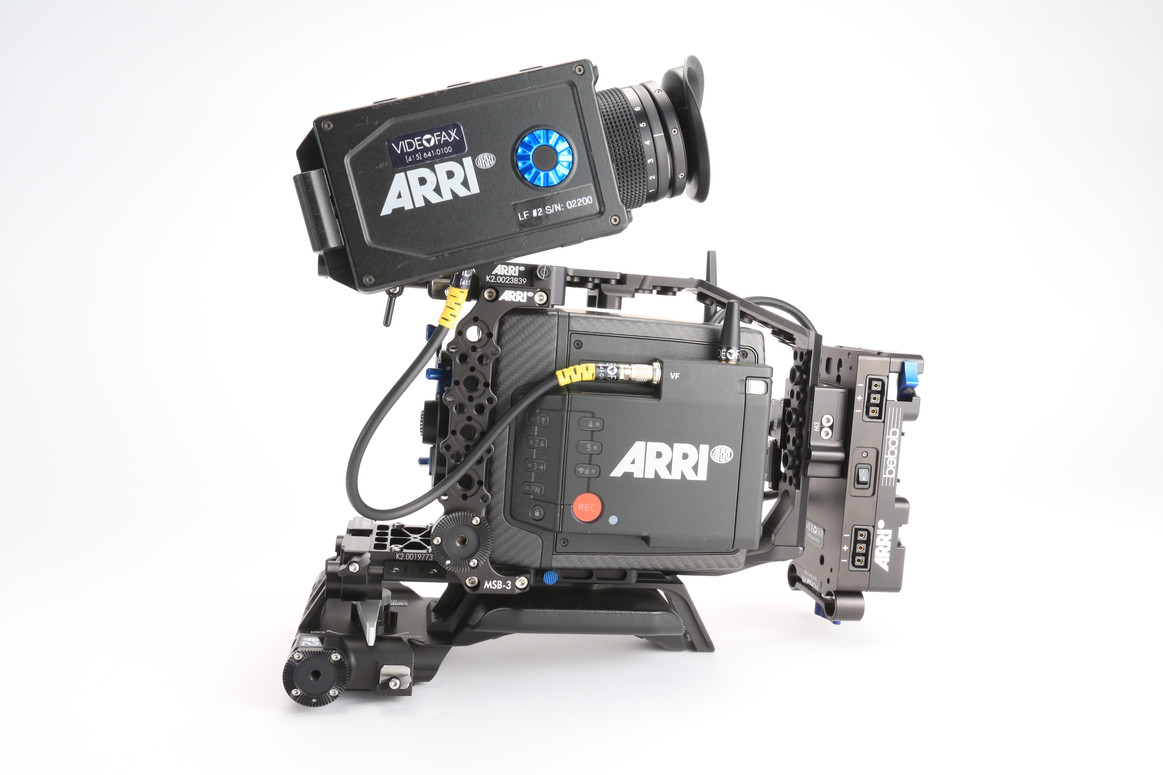

ARRI ALEXA Mini LF
We are thrilled to have the Alexa Mini LF available in inventory. The ALEXA Mini LF is the newest member of the ARRI ALEXA large-format camera system. Whether you are choosing Signature Primes with the LPL mount or going with PL mount lenses we have a variety of options to suit the needs of your project.
Sensor Mode
LF Open Gate (4448x3096) , LF 2.39:1 (4448x1856), LF 16:9 (3840x2160)
Sensor Diagonal
44.71mm
Recording Codecs
MXF/ARRIRAW; ProRes 4444XQ; 4444; 422HQ
Recorded Resolution
LF Open Gate: ARRIRAW 4.5K, ProRes 4.5K (4448x3096)
LF 2.39:1: ProRes 4.5K, ARRIRAW 4.5K (4448x1856)
LF 16:9: ProRes HD (1920x1080)
ProRes 2K( 2048x1152),
ProRes UHD (3840x2160),
ARRIRAW UHD (3840x2160)
Frame Rates
From 0.75 to 40fps in Open Gate
From 0.75 to 60fps in 2.39 ProRes, 2.39 ARRIRAW, 16:9 ProRes UHD, 16:9 ARRIRAW
From 0.75 to 90fps in 16:9 HD, 16:9 2K
Lens Squeeze Factors
1.00, 1.25, 1.30, 1.50
Sensitivity
800 ASA base, Adjustable range EI 160-3200 in 1/3 stops
Latitude
14 Stops
Lens Mount
LPL 44mm lens mount with LBUS connector; LPL to 52mm PL adapter
Recording Media
Codex Compact Drives
Outputs
SDI 1: 1.5g or 3G - HD only, Processed or Clean, with or without a Look applied
SDI 2: 1.5G, 3G or 6G - HD or UHD, Clean only, with or without a Look applied, or SDI 1 clone
Weight/Power
5.7 lbs body only / around 65 watts
Additional Features
Built-In motor drivers for Arri or C-Motion motors
Built-in motorized ND Filters, 0.6, 1.2, 2.1
Fixed optical low pass, UV, IR filters
RED V-Raptor [X] 8K VV Camera
![Image of RED V-Raptor [X] 8K VV Camera](https://cdn-s12.ssmedia.com/ck_20250218171447/videofax/webart/products/247.jpg)
SENSOR TYPE
V-RAPTOR [X] 8K VV 35.4MP Global Shutter CMOS
EFFECTIVE PIXELS
8192 x 4320
SENSOR SIZE
40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE
17+ stops
MOUNT TYPE
Integrated locking RF mount with electronic communication
Supports /i PL lenses with RED RF to PL Adapters
Supports Canon EF Adapter with communication and other adapters based on the RF mount
MAX DATA RATES
Up to 800 MB/s using RED branded or other qualified CFexpress media cards1
REDCODE RAW MAX FRAME RATES
120 fps at 8K 17:9, 150 fps at 8K 2.4:1
140 fps at 7K 17:9, 175 fps at 7K 2.4:1
160 fps at 6K 17:9, 200 fps at 6K 2.4:1
192 fps at 5K 17:9, 240 fps at 5K 2.4:1
240 fps at 4K 17:9, 300 fps at 4K 2.4:1
320 fps at 3K 17:9, 400 fps at 3K 2.4:1
480 fps at 2K 17:9, 600 fps at 2K 2.4:1
BEST AVAILABLE REDCODE SETTINGS
REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps
REDCODE LQ and ELQ at 8K 17:9 up to 120 fps
REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 96 fps
REDCODE MQ, LQ, and ELQ at 6K 17:9 up to 160 fps
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 240 fps
REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 480 fps
REDCODE RAW ACQUISITION FORMATS
8K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9, 2:1, 2.4:1, 16:9, 1:1
4K 17:9, 2:1, 2.4:1, 16:9, 1:1
3K 17:9, 2:1, 2.4:1, 16:9, 1:1
2K 17:9, 2:1, 2.4:1, 16:9, 1:1
APPLE PRORES
Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P
Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P
CONSTRUCTION
Aluminum Alloy
DIMENSIONS
149.63 mm x 115.5 mm x 108 mm / 5.9 in. x 4.5 in. x 4.3 in. (LxWxH, largest fixed dims.)
WEIGHT
4.03 lbs / 1.83 kg (without body cap and CFexpress card)
MEDIA TYPE
CFexpress Type B
BATTERY TYPE
Integrated V-Lock battery interface optimized for Micro V-Lock Batteries1
DC POWER INPUT
11-17 V via 6-Pin DC-IN
OPERATING TEMPERATURE
0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE
–20°C to 50°C (–4°F to 122°F)
STORAGE RELATIVE HUMIDITY
0% to 85% non-condensing
RED GLOBAL VISION
Extended Highlights capability to capture more detail and color in extreme dynamic range scenarios.
Phantom Track recording mode to capture multiple LED instances as dedicated clips.
COLOR MANAGEMENT
Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import and adjustment of CDLs
AUDIO
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
3.5mm stereo headphone port
AUTOFOCUS
Phase Detect with Face Detection
IP CONNECTED
Compatible with the RED Connect Module for live 8K R3D video over IP or live 4K over SMPTE ST 2110
Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1required) allowing remote camera control, live MJPEG preview video feed and remote media offload
Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter1 required) for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload
MONITOR OUTPUTS
Proprietary Top Accessory Port for Monitoring and Control
Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS
DSMC3 RED Touch 7.0” LCD
RED Compact EVF with DSMC3 Adapter A
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4" LCD for camera control (no preview video)
ADDITIONAL I/O
Tri-Level Genlock Input via 9-Pin EXT
LTC Timecode Input via 9-Pin EXT
RS232 CTRL (using RCP2) via 9-Pin EXT
RED CONTROL & RED CONTROL PRO
Access full camera controls and live preview from iOS or Android devices
Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT
controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location.
Standard app available from the Apple App Store and Google Play Store.
RED Control Pro available via Apple App store only and requires additional purchase.
RED Control works wirelessly or wired via USB-C

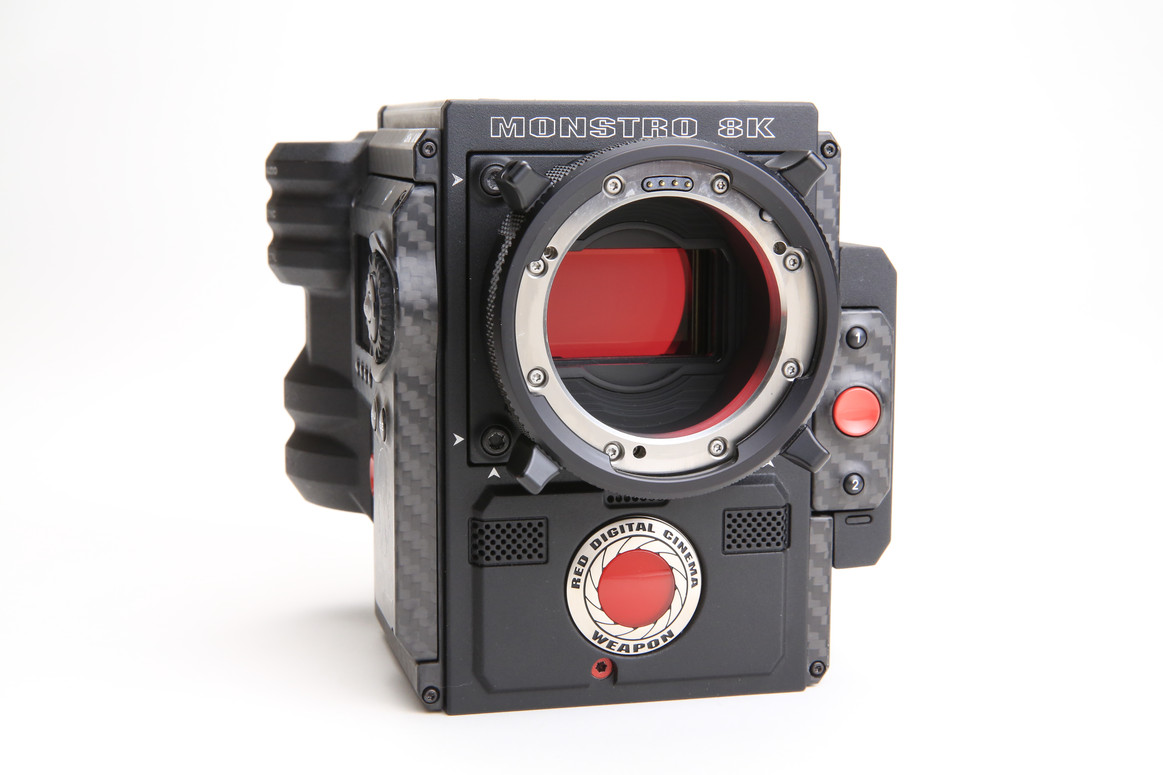

Red Weapon MONSTRO VV
Sensor
MONSTRO 35.4 Megapixel CMOS
Sensor Diagonal
46.31mm
Recorded Resolution
8K FF, 2:1, 2.4:1, 16:9, 14:9, 8:9, 3:2, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
7K FF, 2:1, 2.4:1, 16:9, 8:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
6K FF, 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
5K FF, 2:1, 2.4:1, 16:9, 8:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
4K FF, 2:1, 2.4:1, 16:9, 8:9 ,3:2, 4:3, 5:4, 6:5, 4:1, 8:1, 1:1, and Ana 2x, 1.3x
3K / 2K FF, 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
Max Frame Rates
Up to 60 fps 7K & 8K FF / 75 fps @ 6K FF / 96 fps @ 5K FF / 120 fps @ 4K FF / 150 fps @ 3k FF / 240 fps @ 2K FF
Sensitivity
Not specified by RED. Typical EI Range 800-2000
Latitude
17+ stops
Lens Mount
PL or EF
Internal Recording
RED RAW
ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K up to 29.97 fps, at 2K up to 120 fps
ProRes 4444 XQ and ProRes 4444 at 2K up to 120 fps
DNxHR HQX at 4K 12-bit up to 29.97 fps
DNxHR HQ, SQ and LB at 4K 8-bit up to 29.97 fps, at HD 8-bit up to 120 fps
DNxHR 444 at 2K 12-bit up to 120 fps, DNxHD 444 and HQX at HD 10-bit up to 120 fps
Recording Media
RED MINI-MAG, 240 GB / 512 GB
Outputs
1x HDSDI 3G-SDI / 1x HDMI
Weight/Power
3.3lbs BRAIN ONLY, CARBON FIBER BODY/ POWER 65W

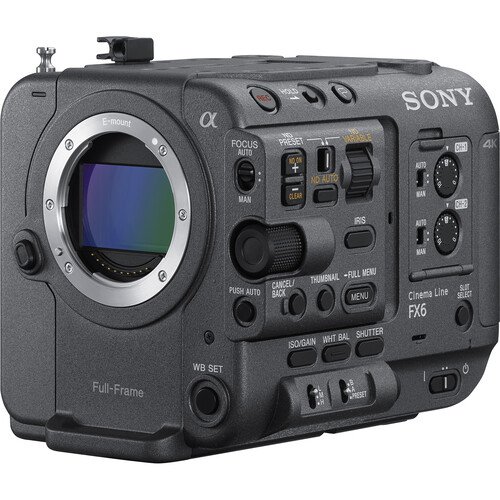

Sony ILME-FX6
Sensor Type
35mm Full-Frame Single-Chip CMOS Image Sensor approx 12.9MP, approx 10.2MP effective
Recorded Resolution
XAVC-I DCI4K 4096 x 2160
XAVC-I QFHD 3840 x 2160
XAVC-I HD 1920 x 1080
XAVC-L QFHD 3840 x 2160
XAVC-L HD 1920 x 1080
Frame Rates
XAVC-I DCI4K: 4096 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P, 24P
XAVC-I QFHD:3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-I HD: 1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L QFHD: 3840 x 2160/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 35:1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P
XAVC-L HD 50: 1920 x 1080/59.94P, 50P, 29.97P, 23.98P, 25P
Slow & Quick Motion
XAVC-I : DCI4K - 1 to 60fps
XAVC-I/L : QFHD -1-60, 100, 120fps / HD 1 to 60, 100, 120, 150, 180, 200, 240
Sensitivity
ISO 800/12800 (Cine EI Mode)
Latitude
15+ Stops
Shutter Speed
64F to 1/8000 sec
Internal Recording
XAVC-I DCI4K 59.94p - MAX bitrate 600 Mbps, MPEG-4 AVC/H.264
XAVC-I DCI4K 50p - MAX bitrate 500 Mbps, MPEG-4 AVC/H.264
XAVC-I DCI4K 29.97p- MAX bitrate 300 Mbps, MPEG-4 AVC/H.264
XAVC-I DCI4K 25p - MAX bitrate 250 Mbps, MPEG-4 AVC/H.264
XAVC-I DCI4K 24p - MAX bitrate 240 Mbps, MPEG-4 AVC/H.264
XAVC-I DCI4K 23.98p- MAX bitrate 240 Mbps, MPEG-4 AVC/H.264
XAVC-I QFHD 59.94p - MAX bitrate 600 Mbps, MPEG-4 AVC/H.264
XAVC-I QFHD 50p - MAX bitrate 500 Mbps, MPEG-4 AVC/H.264
XAVC-I QFHD 29.97p - MAX bitrate 300 Mbps, MPEG-4 AVC/H.264
XAVC-I QFHD 25p - MAX bitrate 250 Mbps, MPEG-4 AVC/H.264
XAVC-I QFHD 23.98p - MAX bitrate 240 Mbps, MPEG-4 AVC/H.264
XAVC-I HD 59.94p - MAX bitrate 222 Mbps, MPEG-4 AVC/H.264
XAVC-I HD 50p - MAX bitrate 223 Mbps, MPEG-4 AVC/H.264
XAVC-I HD 29.97p - MAX bitrate 111 Mbps, MPEG-4 AVC/H.264
XAVC-I HD 25p - MAX bitrate 112 Mbps, MPEG-4 AVC/H.264
XAVC-I HD 23.98p - MAX bitrate 89 Mbps, MPEG-4 AVC/H.264
XAVC-L QFHD 29.97p/25p/23.98p - MAX bitrate 100 Mbps, MPEG-4 H.264/AVC
XAVC-L QFHD 59.94p/50p - MAX bitrate 150 Mbps, MPEG-4 H.264/AVC
XAVC-L HD 29.97p/25p/23.98p/59.94p/50p - MAX bitrate 50 Mbps, MPEG-4 H.264/AVC
XAVC-L HD 29.97p/25p/23.98p/59.94p/50p - MAX bitrate 35 Mbps, MPEG-4 H.264/AVC
Recording Media
CF Express Type A/ SD (x2)
Outputs
Timecode - BNC (sithcable
SDI - BNC 12G, 6G, 3G (Level A/B)
HDMI - Type A (x1)
Audio Input - 3-pin XLR (x2) Line/mic/mic+48 selectable
Heaphone Output - Sereo Mini Jack
USB - Type-C (x1), Micro-B (x1)
DC Input - DC Jack
Remote - minijack
Lens Mount
native E-Mount (Mount adapters available upon request)
Monitoring
LCD - 8.8cm (3.5") - 2.76M dots
Built-in Optical Filters
Clear, Liner Variable ND (1/4 to 1/128 stops)
White Balance
Preset, Memory A Memory B (2000K - 15000K) ATW
Exposure
-3 to 30dB (every 1dB) AGC
Gamma
SDR mode: S-Cinetone, Standard, Still, ITU709, 709tone
HDR mode: HLG Live, HLG Natural
Weight
4.49 x 4.57 x 6.02 " (114 x 116 x 153 mm) (body without protrusions)
Power Consumption
Approx. 18.0 W (while recording XAVC-I QFHD 59.94p, SEL24105G Lens, Viewfinder ON, not using external device)
Power Requirements
DC 19.5 V
Sony PXW-FX9
Recorded Resolution
4096 x 2160 / 3840 x 2160 / 1920 x 1080
Frame Rates
Up to 59.94P - Quick & Slow up to 180 fps in FF 2K XAVC-I
Sensitivity
ISO 800 / 4000 (Cine EI mode, D55 Light Source)
Latitude
15+ stops
Lens Mount
Sony E; PL, Canon EF Adapters
Internal Recording
XAVC Intra, XAVC Long GOP, MPEG-2 Long GOP
Recording Media
QXD Card Slot x 2; SD for data or proxy recording
Outputs
SDI OUT x2 (12G-SDI, 3G-SDI (Level A/B), HD-SDI), TC in/out, GL in/REF out switchable
Weight/Power
4.1 lbs body only - approx 10 lbs body, vf, eyepiece, grip
Sony A7s MkII
Recorded Resolution
XAVC S 4K 3840 x 2160 / XAVC S HD 1920 x 1080 / AVCHD 1920 x 1080 / MP4 1920 x 1080, 1280 x 720
Frame Rates
3840 x 2160 - 24 / 25 / 30p
1920 x 1080 - 24 / 25 / 30 / 60 / 100 / 120p (plus 50i / 60i in AVCHD)
1280 x 720 - 25 / 30p
Sensitivity
AUTO, Plus 50-409600
Latitude
14 Stops
Lens Mount
Sony E; PL, Canon EF Adapters
Internal Recording
8-bit/4:2:0Long GOP up to 50Mbps @ 1080/60fps (MP4/MPEG4 /AVCHD/XAVC S)
Recording Media
SDXC
Outputs
HDMI D (Micro) 8-bit 4:2:2
Weight/Power
22.12 oz with battery and memory cards body only -4.9lb Body,VF, Eyepiece, Grip, BP / 11.8 watts
